Overview

The In‑Bond Entry page captures the full lifecycle for in‑bond movements (Types 61/62/63), from original import details to in‑bond particulars, HTS lines, container data, PGA addenda, and hazmat attributes. Complete the sections below in order for a compliant transmission.

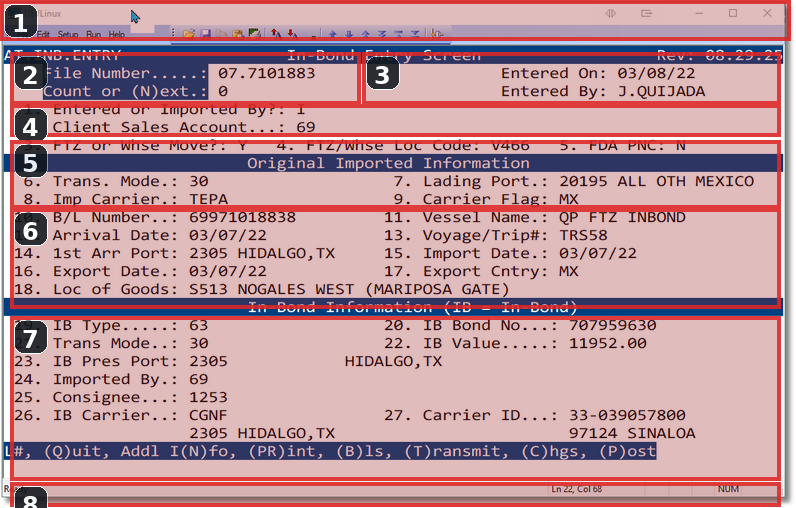

1) In‑Bond Entry — Main Screen

1. Header — Title bar and menu.
2. File Number / Count — unique control and extension count.
3. Entered On / By — audit stamps.
4. Original Imported Information — Carrier, B/L, Arrival, Port, Export country/date, First/Last port, etc.
5. In‑Bond Information — IB Type, Bond No/Value, Importer/Consignee, Pres Port, Carrier ID, locations.
6. Command bar — (Q)uit, AddI I(N)fo, (PR)int, (BL)s, (T)ransmit, (Chgs), (P)ost.

Minimum to save: File Number, IB Type, IB Number, Carrier & Importer/Consignee (as applicable), and location fields.

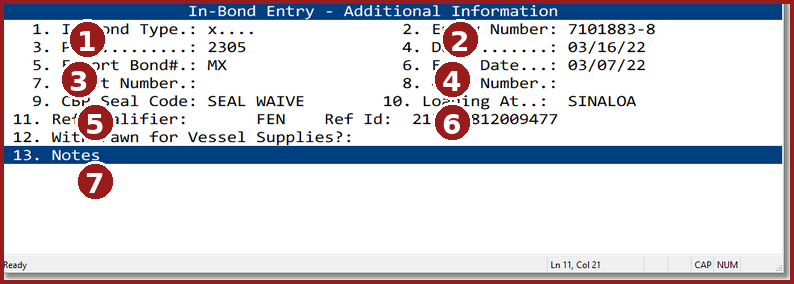

2) Additional Information (Add I(N)fo)

First 4 items below print top left of the 7512 form to deal with a previous inbond input.
Whenever merchandise, which has been entered previously (in-bond, consumption, warehouse, etc.), is entered for any type of in-bond entry, the immediately preceding entry information must be supplied with the date of that entry. The standard HTSUS Schedule D port code is used instead of the port name.

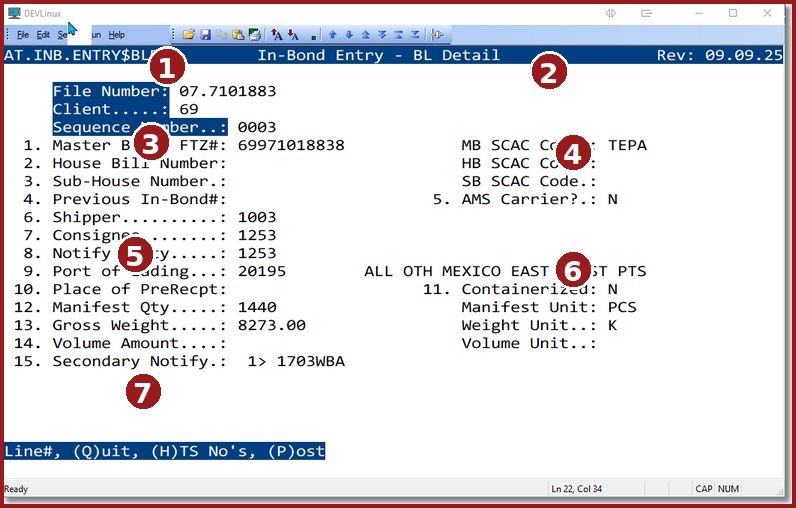

3) Bill of Lading (B/L) — Detail

• Master / House / Sub‑House — identify all levels of BL.
• Previous In‑Bond — reference if this is a subsequent move.
• Parties — Shipper, Consignee, Notify & Secondary Notify.
• Ports — Port of Lading, Place of Pre‑receipt.
• Quantities — Manifest Qty/Unit; Gross Weight/Unit; Containerized flag.
• SCAC codes — MB/HB/SB where applicable.

NOTE: If the above information is entered, they print in the body of the 7512. Housebill is ONLY allowed on Air InBonds, HB SCAC Code is NO longer allowed, Subhouse is NO longer allowed and SB SCAC Code is NO longer allowed for Transmission.

Additional Tips: Secondary Notify: Not applicable to Air In-Bond. Must be a valid SCAC or Firms Code and when entered, ACE/CBP will forward to that party a NS Notification Message about shipment.

NOTE: FasTrax automatically transmits, you, the broker, as a Secondary Notify party in the format of Port/Filer

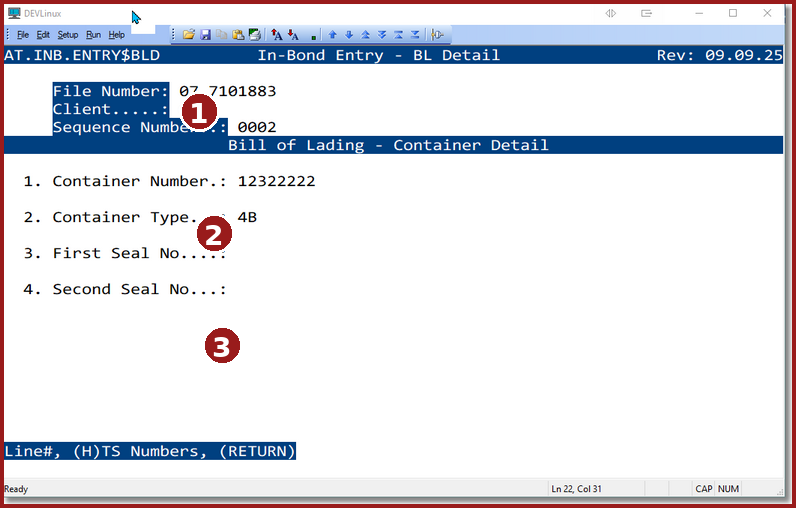

4) Container Detail

Capture per‑container data: Container Number, Type, Seal numbers. Leave NON‑CONTAINERIZED for bulk/breakbulk shipments.

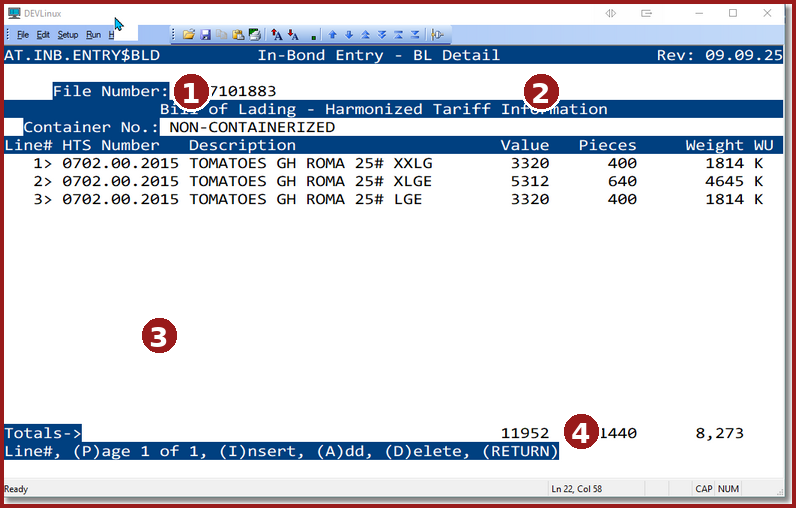

5) HTS Grid (Harmonized Tariff)

Enter one or more HTS lines. Use Insert / Add / Delete on the command line.

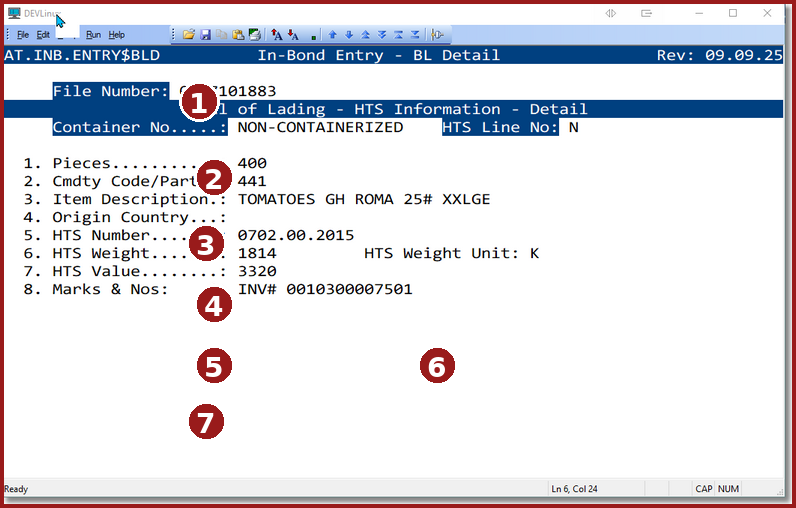

6) HTS Line — Detail

• Pieces — numeric count.
• Cmdty Code/Part# — internal item reference.
• Item Description — line‑level description.
• Origin Country — ISO country code.
• HTS Number — tariff code for the line.
• HTS Weight / Unit — numeric + K/LB.
• HTS Value — apportioned value.
• Marks & Nos — packaging/markings (e.g., invoice ref).

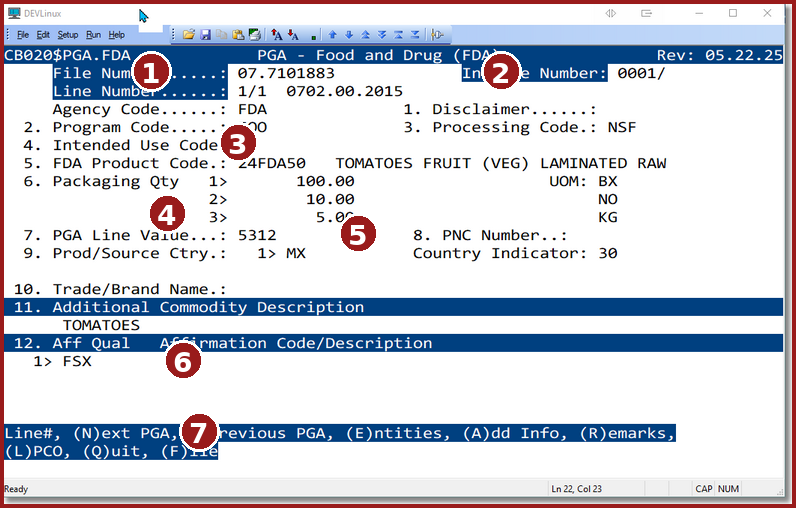

7) PGA — Food and Drug (FDA)

• Agency/Program Codes — e.g., FDA/FOO.
• Intended Use / Product Code — FDA classification (e.g., 24FDA50).
• Packaging Qty/Unit — packaging breakdown (BX/NO/KG etc.).
• PNC Number / Country Indicator — as required for entry.
• Additional Commodity Description — extended narrative.
• Affirmation of Compliance — codes (e.g., FSX) with descriptions.

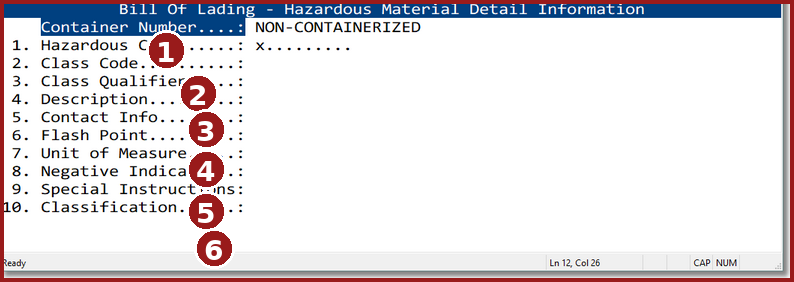

8) Hazmat Detail

Capture hazardous material data when applicable: Hazardous Code, Class/Qualifier, Description, Contact, Flash Point, UOM, Negative Indicator, Special Instructions, Classification.

9) Function Keys & Command Shortcuts

Validation tips: ensure ports, carrier SCAC, IB #, and HTS totals align with B/L and manifest. Use HTS grid totals to reconcile Value/Pieces/Weight.
